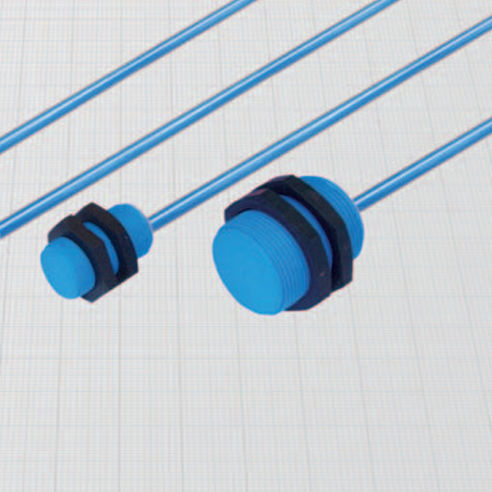

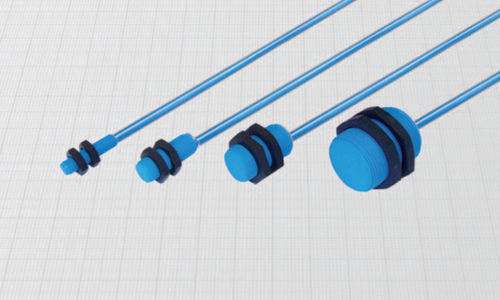

Electromagnetic proximity sensor DC8P/4600cylindricalM8NAMUR
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- NAMUR
- Supply voltage
- 8VDC, 9VDC
- Material
- plastic, brass, PVC
- Protection level
- ATEX, EMC, IP67
- Length
30 mm
(1.18 in)- Measuring range
Max.: 15 mm
(0.59 in)Min.: 1.5 mm
(0.06 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
•Working voltage: 5 ÷30 Vdc
• Supply voltage according to NAMUR: 7,7 ÷9 Vdc
•Max ripple: 10%
• Consumption at 8,2 V con Rx = 1000 Ω with metal: ≤1 mA without metal: ≥3 mA
•Max thermal drift of sensing distance Sr: ±10%
• Repeat accuracy (R): 2%
• Cable conductor cross section: 0,35 mm2on 8 and 12 mm 0,75 mm2on 18 and 30 mm
• According to EN60947-5-6
• Electromagnetic compatibility (EMC) according to EN60947-5-2
• Shock and vibration resistance according to EN60068-2-27 EN60068-2-6
• For certified ATEXversion see ATEX Catalogue
Materials:
• Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R.
• Housing: plastic
• Sensing face: plastic
Catalogs
General Catalogue
213 Pages
