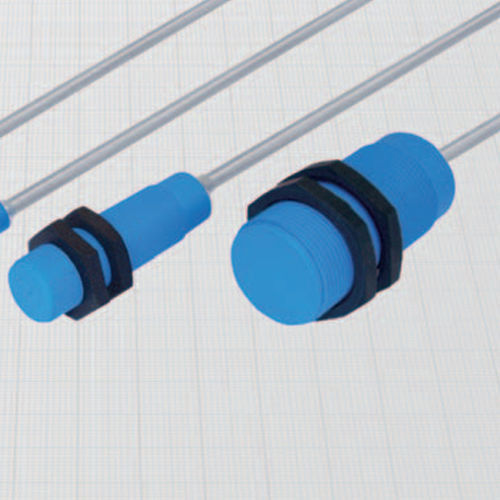

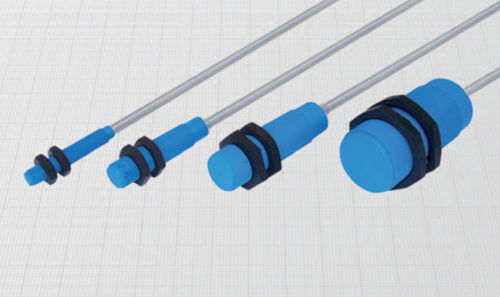

Electromagnetic proximity sensor AC8P/4609ScylindricalM30M18
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Shape
- cylindrical
- Diameter
- M12, M30, M18, M8
- Supply voltage
- 240 VAC
- Material
- plastic, PVC
- Protection level
- IEC, EMC, IP67
- Length
47 mm, 50 mm, 60 mm
(1.85 in, 1.97 in, 2.36 in)- Measuring range
Min.: 1.5 mm
(0.06 in)Max.: 15 mm
(0.59 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
• Supply voltage (UB): 20 ÷240 Vac
• Electrical system frequency: 40 ÷60 Hz
•Off-state current (Ir): ≤1,5 mA at 110 Vac
•Minimum operational current (Im): 5 mA
• Voltage drop (Ud): ≤5 V
•Max thermal drift of sensing distance Sr: ±10%
• Repeat accuracy (R): 2%
• Switching hysteresis (H): 10%
• Switch status indicator: yellow LED
• Cable conductor cross section: 0,35 mm2on 8 and 12 mm 0,50 mm2on 18 mm 0,75 mm2on 30 mm
• Suppression of initial false impulse
• Class 2 equipment according to IEC 536
• Shock and vibration according to EN60068-2-27 EN60068-2-6
• Electromagnetic compatibility (EMC) according to EN60947-5-2
Materials:
• Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R.
• Housing: plastic
• Sensing face: plastic
