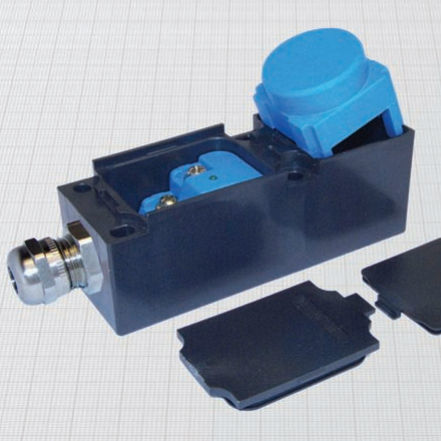

Inductive proximity sensor DCP/4700A

electromagneticrectangularNAMUR

• NAMUR SERIES - TYPE P - 5 Position head • ATEX certified II 1G for zone 0 • Terminal block output General features: These sensors are described as “revolving head” because the actual sensor head, inside the plastic body, can be arranged in 5 different positions. To choose the desired direction it is sufficient to remove the cover, remove the head and positioning it according to the user’s particular requirements. The internal terminal block can be reached easily by removing the front cover. The particular plastic material allows the use without additional protections against electrostatic charges. Technical data: • Supply voltage according NAMUR: 7,7 ÷ 9 Vdc • Max ripple: 10% • Consumption at 8,2 V with Rx = 1000 Ω with metal: ≤ 1 mA without metal: ≥ 3 mA • Temperature range: - 20° ÷ + 60°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Marking: II 1G Ex ia IIC T6 • Certified IMQ 08 ATEX 010 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • According to: EN60947-5-6/EN60079-0/EN60079-11/EN60079-26 • Shock and vibration resistance according to EN60068-2-27/EN60068-2-6 Safety parameters: • Vi max: 13,5 V • Ii max: 60 mA • Ci max: 100 nF • Li max: 100 μH • Pi max: 200 mW These sensors must be used in conjunction with associated apparatus (See Sect. E) Use in hazardous area according to instruction manuals
