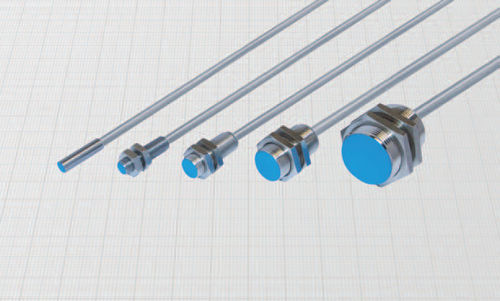

Inductive proximity sensor DSA6,5/4609LKS

cylindricalthreadedplastic

• SHORT SERIES • Amplified in d.c. 3 wires • Cable output Technical data: • Supply voltage (UB): see ordering references • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): ≤ 1,5 V • Temperature range: - 25° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Switch status indicator: yellow LED • Cable conductor cross section: 0,22 mm2 on 6,5 and 8 mm 0,35 mm2 on 12 mm 0,50 mm2 on 18 and 30 mm • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing 6,5 and 8 mm: stainless steel • Housing 12 ÷ 30 mm: nickel plated brass • Sensing face: plastic
