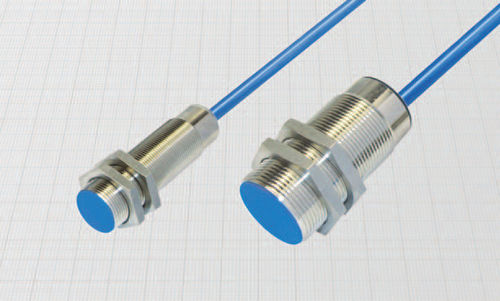

Capacitive proximity sensor NKS series

electromagneticcylindricalM30

NAMUR SERIES • Non-amplified in d.c. 2 wires • Cable output • General Features: Capacitive sensors are suitable for any material detection. Some material, mostly if liquids, can be detected also through plastic or glass walls. They can be used for the most different applications: level controls on storage bin or tanks; detection of presence or filling of bottles; rain sensor; anti-vandalic key; etc. The adjustment of the sensing distance is possible through the potentiometer on the back cap. Safety parameters: • Working voltage: 7 ÷ 30 Vdc • Supply voltage according to NAMUR: 7,7 ÷ 9 Vdc • Max ripple: 10% • Consumption at 8,2 V with Rx = 1000 Ω with metal: ≥ 2,2 mA without metal: ≤ 1 mA • Max thermal drift of sensing distance Sr : ± 20% • Repeat accuracy (R): 4% • Cable conductor cross section: 0,75 mm2 • According to EN60947-5-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 • For certified ATEX version see ATEX Catalogue Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: nickel plated brass • Sensing face: plastic
