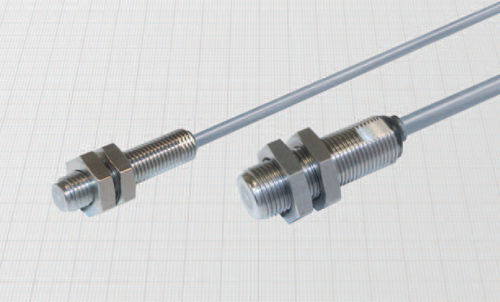

Reed proximity sensor BMS8/4600S

cylindricalM12M8

• REED CONTACT 2 and 3 wires with LED • Detection of magnets • Cable output General Features: These sensors give on the output a contact activated by an external magnetic field, not depending by the polarity of the field. The activation distance depends by the power of the magnet (see on page C-12), which must be ordered separately. Reed contacts allows to drive directly dc loads (PNP/NPN) or ac loads. The output status is indicated by LED. The extremely strong construction allows the use in the most difficult conditions even with high pressures on the housing. Technical data: • Working voltage: 10 ÷ 30 Vac/Vdc • Voltage drop (Ud) (2 wires versions) with Ie = 10 mA: ≤ 2,2 V with Ie = 100 mA: ≤ 3 V • Output logic normally open • Contact resitance max (3 wires versions) 0,1 Ω • Operate time max 1 ms • Release time max 0,4 ms • Max pressure on the front side 150 bar • Output status indication yellow LED • Cable conductor cross section: 0,22 mm2 on8 mm 0,34 mm2 on12 mm Materials: • Cable: 2m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: stainless steel
