Reed proximity sensor BMT series

electromagneticrectangularring

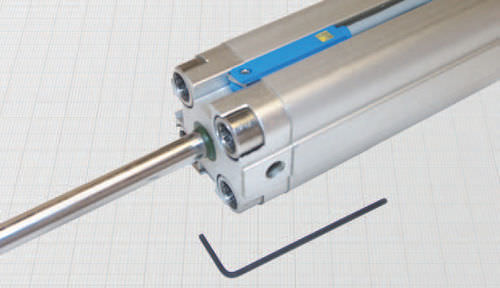

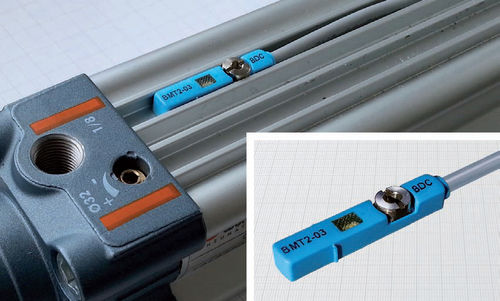

• REED CONTACT 2 and 3-wire with LED • For pneumatic cylinders with T slot • Drop-in mounting • Cable and connector output M8 x 1 or M12 x 1 General Features: This sensor detects the position of the magnetic ring inside a standard pneumatic cylinder with a T slot. The sensor remains completely recessed and thus mechanically protected. A clip to fix the cable inside the slot is supplied with the sensor. Reed contact provides for a direct driving of DC (PNP/NPN) and AC loads. A yellow LED gives indication of the output status. Available with cable exit, M8x1 connector or M12x1 connector. Technical data: • Working voltage: 10 ÷ 30 Vac/Vdc • Output function: normally open • Voltage drop (Ud) 2-wire versions: with Ie = 10 mA ≤ 2,2 V with Ie = 160 mA ≤ 3 V • Contact resistance max (3-wire versions): 0,1 Ω • Operate time max: 0,7 ms • Release time max: 0,4 ms • Output status indication: yellow LED • Cable conductor cross section: 0,15 mm2 • Electromagnetic compatibility (EMC) according to EN60947-5-2 Materials: • Cable: BMT... PVC CEI 20-22 II; 90°C; 300V BMT...F; BMT...N; BMT...H; BMT...R PUR VDE 0492/265 90°C • Sensor and fixing clip: plastic • Rotating nut and fixing screw (*): nickel plated brass (*) Stainless steel fixing screw available on request
