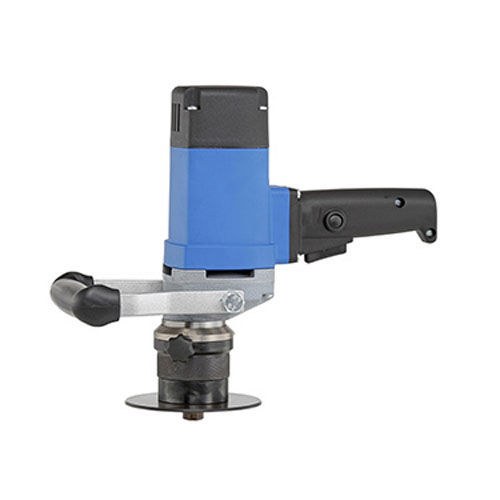

Portable chamfering and deburring machine EKF 300.3
weld preparation

Portable chamfering and deburring machine - EKF 300.3 - BDS Maschinen GmbH - Germany - weld preparation
Portable chamfering and deburring machine - EKF 300.3 - BDS Maschinen GmbH - Germany - weld preparation
Portable chamfering and deburring machine - EKF 300.3 - BDS Maschinen GmbH - Germany - weld preparation - image - 2
Portable chamfering and deburring machine - EKF 300.3 - BDS Maschinen GmbH - Germany - weld preparation - image - 3
Portable chamfering and deburring machine - EKF 300.3 - BDS Maschinen GmbH - Germany - weld preparation - image - 4
Portable chamfering and deburring machine - EKF 300.3 - BDS Maschinen GmbH - Germany - weld preparation - image - 5
Add to favorites
Compare this product


Characteristics

Type
portable
Applications
weld preparation
Power

1,500 W
(2.04 hp)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Chamfer angle

30 °, 45 °

Description

EKF 300.3 Chamfering Machine with fine adjustment feature for slight chamfers when deburring for the preparation of weld seams. The EKF 300.3 is ideal for chamfering 30-degree angle in 5 mm (1/4") width. Ideal for straight edges, from the outside edge of the profile as well as the inside edges. Equipped with a robust milling cutter the EKF 300.3 has 3 pieces of carbide inserts in a triangular shape which can be used from 3 sides. Made in Germany EKF 300.3 is equipped with a powerful 1500 Watt (13.6 Amp) motor which delivers 6000 RPM. This compact EKF 300.3 chamfering machines weighs just 4.6 Kg (10.5 lbs)

VIDEO
