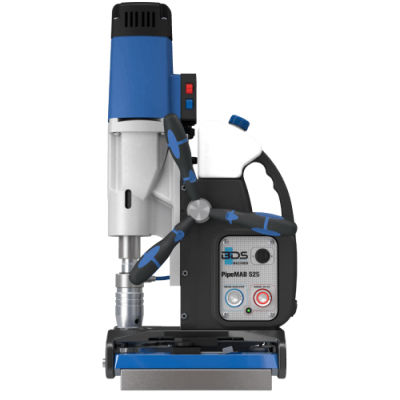

Tube sheet drilling and tapping machine PipeMAB 525
variable speedcompactlightweight

Tube sheet drilling and tapping machine - PipeMAB 525 - BDS Maschinen GmbH - Germany - variable speed / compact / lightweight

Add to favorites

Compare this product

Characteristics

Applications

for tube sheets

Other characteristics

magnetic, compact, variable speed, lightweight, M20

Drilling diameter

50 mm
(1.97 in)

Power

1,600 W

Rotational speed

Max.: 580 rpm
(3,644.2 rad.min-1)

Min.: 70 rpm
(439.8 rad.min-1)

Weight

20 kg
(44 lb)

Description

Powerful magnetic adhesion force up to max. 1020kg (20 mm material thickness / S 275 JR). The new PipeMAB magnetic core drilling machines from BDS Maschinen, Made in Germany. The patented pipe magnetic clamping system with two permanent magnets automatically adapts to the pipe diameter. The swivel arrangement of the permanent magnets allows pivoting to conform to any pipe 85 mm (3") diameter or larger, on straight surfaces as well as inside and outside of the curve surfaces. Result: Fast, accurate and safe drilling with the BDS PipeMAB series. Ideal for drilling+tapping on curved & flat surfaces Reversible motor with variable speed & torque controls Patented shallow-field magnetic technology Suitable for pipes 75 mm (3'') or larger Made in Germany lightweight and compact machine Strong grip for material as thin as 3 mm (9/64") Elongated tool holder for maximum utilization of the machines' stroke
