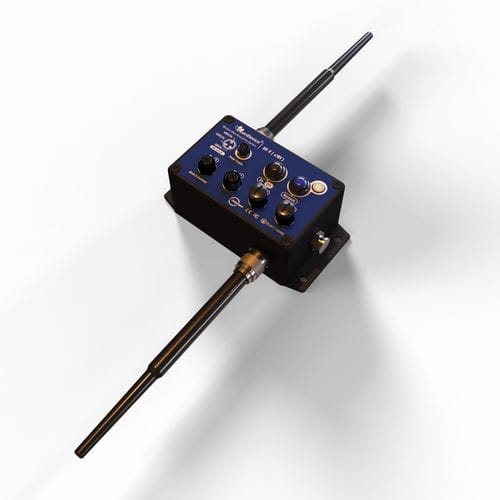

Wireless data acquisition system BeanDevice® AN-V

portableembeddedanalog input

The BeanDevice® 2.4GHz AN-V is a wireless data logger with voltage inputs (±5V or ±10V). Special care is taken in the analog signal conditioner design with an accuracy of ±0.08% (FS) and a dynamic range of 16-bits. The sensor is directly powered by a high accuracy and adjustable DC/DC converter integrated inside the device. The excitation voltage is remotely configurable through the BeanScape® 2.4GHz (4.5 to 20V). Characterized by a waterproof (IP67/NEMA6) and rugged aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a maximum wireless range of 650 meters (Line of Sight), this wireless device is well suited for all types of industrial applications. Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis. Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz or OPC DA available on our BeanScape® (Premium+ & Multiview versions only). The BeanDevice® AN-mV is suitable for the following applications: •Remote monitoring •Built-in test equipment •Condition monitoring •Structural Health Monitoring (SHM)
