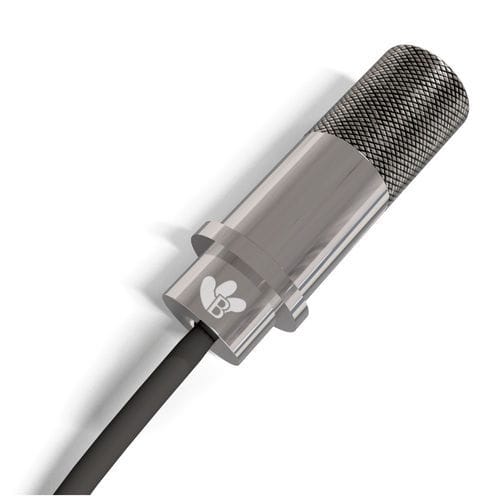

Digital humidity and temperature sensor B-TH-01resistance5 VDCwaterproof
Add to favorites
Compare this product
Characteristics
- Technology
- resistance
- Output
- digital
- Supply voltage
- 5 VDC
- Protection level
- waterproof
- Applications
- air, for industrial applications
- Measuring range (%)
Max.: 100 %
Min.: 0 %
- Precision
1.5 %
- Resolution
0.01 %
- Measuring range (temperature)
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)- Accuracy (temperature)
0.1 °C
(32.18 °F)- Resolution (temperature)
0.01 °C
(32.02 °F)- Working temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
The sensor probe B-TH-01 is dedicated to Temperature and Air Humidity Measurement for dusty environment.
It comes with digital I2C output, and ESD +15kV protection.
Main Features:
- Measuring range : 0 to 100 %RH for Humidity, Temperature Range: -40°C to +80°C
- Accuracy: ±1.5% RH for humidity , ±0.1 °C for temperature
- Power Supply: 3.3VDC
- Response Time : 8s for Humidity, 2s for Temperature
- Supply Voltage : 2.4 to 5.5VDC
- Average supply current: 1.5 uA
- Max supply current : 1500 uA
- Waterproof IP67
- Digital Output : I2C with 14-bit of resolution
