Monitoring starter kit BeanDevice® 2.4GHZ AX-3D-Xrange

for vibration measurementIoT

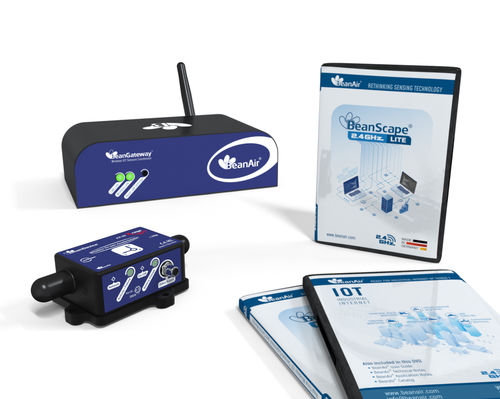

This wirelesss IOT vibration starterkit includes everything you need to setup quickly your vibration monitoring application : - Wireless Receiver/Gateway with LAN Output (Ref: BeanGateway® Indoor) - Wireless Vibration sensor with screw mounting base, measurement range ±2g (ref: BeanDevice® 2.4GHZ AX-3D XRange ±2g) - Free software to collect and display in real-time data measurement from the vibration sensor (Ref: BeanScape® 2.4GHZ Premium) - AC/DC Power Adapter ( US or EUR or UK plugs) for charging the integrated battery or to be used constantly Wireless Vibration sensor main features : - Wireless vibration sensor (measurement range ±2g) with real-time FFT and Velocity values - Global License-free band 2.4GHZ, with maximum radio range 650 meters - Ultra Low Noise vibration sensor (45 µg/√Hz ) - Time-synchronized data acquisition (±2.5ms of accuracy) - Waterproof IP67 aluminum casing (Nema 6) with screw mounting base - Rechargeable Lithium-Polymer battery 2200 mAh providing a battery life up to 15 months - Embedded data logger : up to 8 million data points (with events dating) Beanair products are Made in Germany and are certified CE/FCC/Giteki
