Vibration measurement starter kit BeanDevice® 2.4GHZ AX-3D SR

monitoringIoT

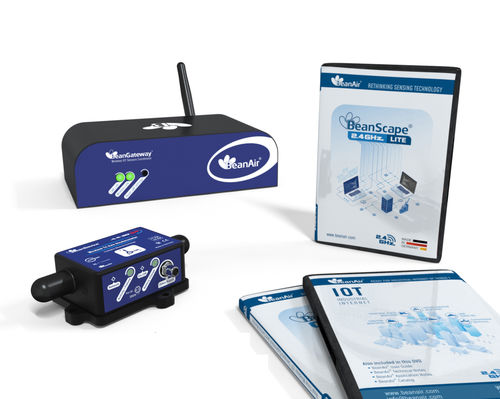

This wirelesss IOT vibration starterkit includes everything you need to setup your monitoring application : - Wireless Receiver/Gateway with LAN Output (Indoor/Not waterproof version) - Wireless Ultra-Low Noise Vibration sensor with screw/Magnetic mounting option (ref: BeanDevice 2.4GHZ AX-3D SR) - Free software to collect and display in real-time data measurement from the vibration sensor (Ref: BeanScape 2.4GHZ Lite) Some few words about the vibration sensor: The BeanDevice® 2.4GHz AX-3D SR is a high-performance wireless vibration sensor with a scalable measuring range (±1.2G and ±2.4G with automatic range adjustment depending on the application). It offers a high level of precision (±1mg for ±1.2G range, ±2mg for ±2.4G range at 1Hz ) and integrates a temperature sensor (located on the device base) for monitoring the temperature on your equipment or structure. Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing, an ultra-low power (40 µA in sleeping mode), an integrated data logger that can store up to 8 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless vibration sensor is well suited for industrial applications where a low level of noise is needed. Users looking for a quick and easy integration with a third party software can use our OPC DA available on our BeanScape® 2.4GHz (Premium+ & Multiview versions only). User can migrate to the version BeanScape Premium if Real-Time FFT an Velocity measurement are required.
