Monitoring starter kit BeanDevice® 2.4GHZ HI-Inc

for inclinometerIoT

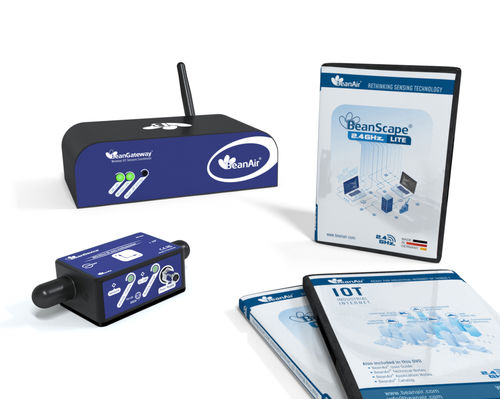

This wirelesss IOT inclinometer starterkit includes everything you need to setup your monitoring application : - Wireless Receiver/Gateway with LAN Output (Indoor/Not waterproof version) - Wireless Inclinometer sensor with screw/Magnetic mounting option (ref: BeanDevice 2.4GHZ HI-INC) - Free software to collect and display in real-time data measurement from the vibration sensor (Ref: BeanScape 2.4GHZ Lite) Some few words about the Inclinometer sensor: BeanDevice® 2.4GHz HI-INC is a wireless inclinometer sensor (range ±30°) with an integrated data logger. Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x21mm, 155g), an ultra-low-power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a tiny radome Omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless inclinometer is well suited for all types of industrial applications. While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® 2.4GHz HI-INC integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.
