Data acquisition starter kit BeanDevice® 2.4GHZ AN-mV

IoT

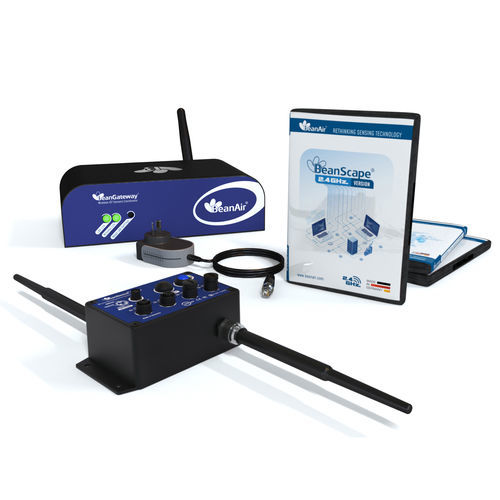

This wireless IOT DAQ instrument starterkit includes everything you need to setup quickly your wireless monitoring application: instrument • Wireless Receiver/Gateway with LAN Output (Ref: BeanGateway® Indoor) • Wireless IOT data acquisition instrument with analog voltage inputs (±20mV) ( ref: BeanDevice® AN-mV ) • Free software to collect and display in real-time data measurement from the wireless DAQ system (Ref: BeanScape® 2.4GHZ version) • AC/DC Power Adapter ( US or EUR or UK plugs) for charging the battery or to be used constantly Wireless DAQ main features : • Analog inputs ±20 mV (4 channels) • Measurement precision less than ± 0.01% on the full scale • Integrated sensor power supply, software configurable 4.5V to 20V (i.e. no need external power supply for your sensors) • Global License-free band 2.4GHZ, with maximum radio range 650 meters (can be extended to 1km with higher gain antenna) • Waterproof and rugged IP67 aluminum casing (Nema 6) • Time-synchronized data acquisition (±2.5ms of accuracy) • Rechargeable Lithium-Polymer battery 2200 mAh providing a battery life up to 12 months • Embedded data logger : up to 1 million data points with events dating This Wireles DAQ system is suitable for Load cell or strain-gage based sensors. Beanair products are Made in Germany and are certified CE/FCC/Giteki
