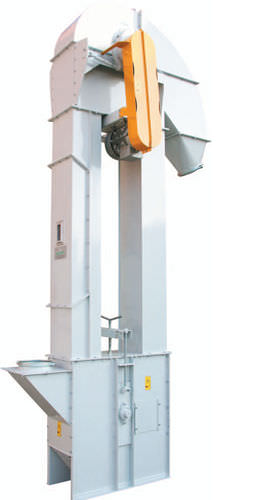

Bucket elevator with electric actuator E series

The vertical buckets elevators Mod. E, in their different models, lift each type of bulk materals without misusev them, ensuring high flow rates per hour at different heights. TECHNICAL FEATURES: Made in painted carbon steel; on request in galvanized or stainless steel. Drive unit with heavy duty motor with hunting reduction gear and no-backing device. Electro-weldel carpentry with special dust-proof and waterproof gaskets. Cleaning doors on the base and on the head. Inspectioning rectangular tube with inside control light. Heavy duty oil-proof belt with widely sized work load. Belt tension device with a single screw. Buckets in pressed carbon steel, or resin. OPTIONALS: inspection platform under the head with railing. ladder from the ground with back-guard. buckets and bolts in stainless steel. loading hopper with safety grate and cover. forced loading screw conveyor with geared motor for products which do not naturally fall by gravity. rotating distributors (4to10 ways) hand-operated or motorised.
