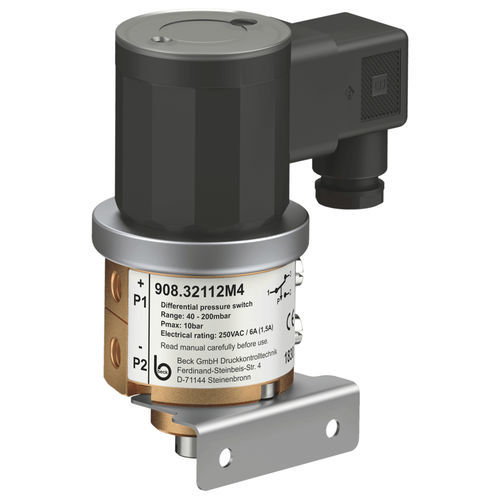

Diaphragm pressure switch 908.3 seriesdifferentialfor waterIP65
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- differential
- Fluid
- for water
- Protection level
- IP65, IP54
- Other characteristics
- adjustable
- Pressure range
Min.: 40 mbar
(0.58 psi)Max.: 1,000 mbar
(14.5 psi)- Switching power: current
6 A, 10 A
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Adjustable differential pressure switch monitoring overpressure, vacuum or differential pressure of liquid and gaseous – also aggressive – media.
The differential pressure switch uses an adjusting screw to enable the adjustment of the switching pressure.
APPLICATIONS
Differential pressure monitoring in e.g. hot water circuit
Electrical rating:
Low power version:
max. 100 mA / 24 VAC
max. 30 mA / 24 VDC
Electrical connection:
flat plug 6.3 x 0.8 mm according to DIN 46244
