Differential pressure transmitter 985v series
piezoresistive4-20 mA0-10 V

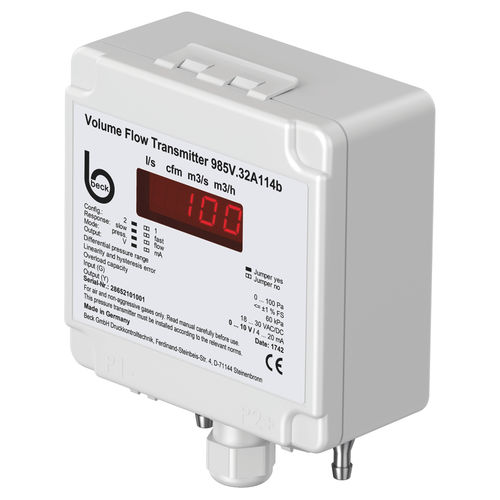

Differential pressure transmitter - 985v series - Beck Sensortechnik GmbH - piezoresistive / 4-20 mA / 0-10 V
Differential pressure transmitter - 985v series - Beck Sensortechnik GmbH - piezoresistive / 4-20 mA / 0-10 V
Differential pressure transmitter - 985v series - Beck Sensortechnik GmbH - piezoresistive / 4-20 mA / 0-10 V - image - 2
Differential pressure transmitter - 985v series - Beck Sensortechnik GmbH - piezoresistive / 4-20 mA / 0-10 V - image - 3
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
piezoresistive
Output
4-20 mA, 0-10 V
Electrical connection
M12 connector, 4-pole
Mounting
wall-mounted, DIN rail
Protection level
IP65
Other characteristics
with display
Pressure range

Min.: 0 mbar
(0 psi)

Max.: 100 mbar
(1.45 psi)

Long-term stability

1 %

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

The transmitters of the 985V series are used to measure volume flow or flow velocity and pressure. A jumper enables switching between volume flow or flow velocity and pressure measurement. Applications Building automation and air conditioning systems Overpressure measurement in clean rooms and laboratories Measurement of constant pressure in VAV applications Dynamic filter and ventilator monitoring Process connection: Hose connection with 4 / 6 mm outer diameter Supply voltage: 18 to 30 VAC / VDC Electrical connection: Plug-in terminals for wires and strands up to 1.5 mm2 or circular connectors M12 / 4-pole
