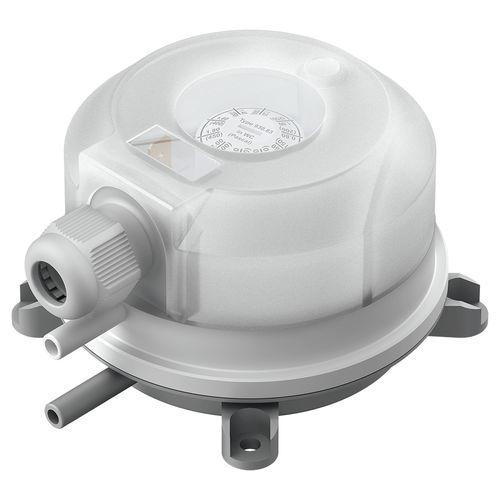

Diaphragm pressure switch 930.8 series
differentialvacuumfor gas

Diaphragm pressure switch - 930.8 series - Beck Sensortechnik GmbH - differential / vacuum / for gas
Diaphragm pressure switch - 930.8 series - Beck Sensortechnik GmbH - differential / vacuum / for gas
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Pressure type
differential, vacuum
Fluid
for gas
Material
plastic
Protection level
IP54
Applications
industrial
Other characteristics
adjustable, IP54
Pressure range

Min.: 20 Pa
(0 psi)

Max.: 5,000 Pa
(0.73 psi)

Switching power: current

1.5 A

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 85 °C
(185 °F)

Description

Adjustable differential pressure switch for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases. The switching pressure can be adjusted without a pressure gauge using a scaled adjustment knob. Various versions with overlapping adjustment ranges between 0.2 mbar and 50 mbar are available for this purpose. As standard, the pressure switch is equipped with a transparent cover of protection class IP54. Applications Monitoring air filters and ventilators Monitoring industrial cooling-air circuits Overheating protection for fan heaters Monitoring flows in ventilation ducts Controlling air and fire-protection flaps Frost protection for heat exchangers Diaphragm material: Silicone, free of gas emissions. Pressure connection: 2 plastic pipe connection pieces (P1 and P2), external diameter 6.0 mm. Electrical connection: Tab terminals 6.3×0.8 mm in accordance with DIN 46244 or push-on screw terminals.
