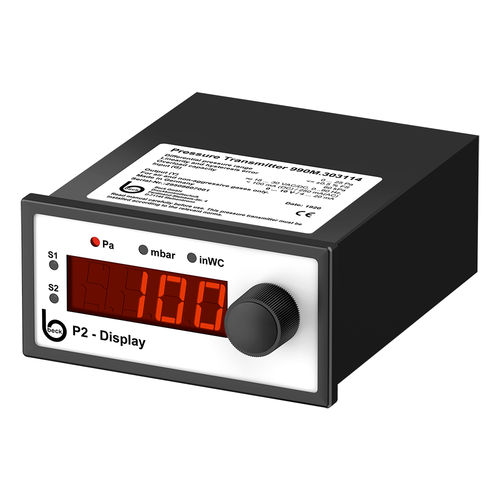

Differential pressure gauge 990 series digitalpanel-mountbuilt-in
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Display
- digital
- Mounting
- panel-mount, built-in
- Communication
- 4-20 mA
- Protection level
- IP20
- Applications
- process, for gas, for air, for vacuum, calibration, for differentfial pressure
- Other characteristics
- adjustable
- Pressure
Min.: 0 Pa
(0 psi)Max.: 250,000 Pa
(36.26 psi)- Process temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
The differential pressure gauges 990 Display are for air and non-aggressive gases and will be used to measure differential pressure, overpressure and vacuum. They offer one adjustable pressure range and two output signals, which can be selected in the menu. The type 990M has a manual zero offset calibration, the type 990A has an automatic zero offset calibration. Monitoring of air and non-aggressive gases.
Applications
Monitoring of air and non-aggressive gases.
Process connection:
4mm and 6mm tube connections
Supply voltage:
18 to 30 VAC / VDC
Electrical connection:
Screw terminals for wires and strands up to 1.5mm²
