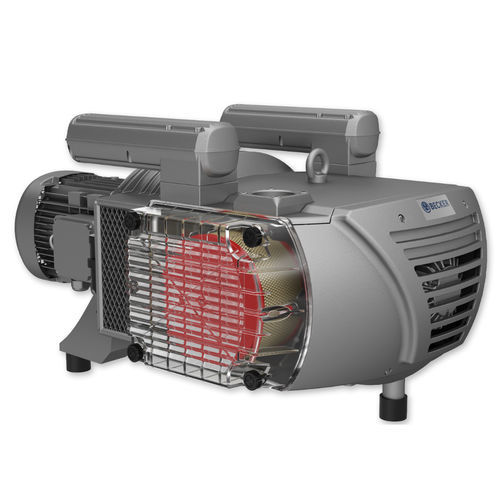

Rotary vane vacuum pump VTLF 2.200
oil-freesingle-stagecompact

Rotary vane vacuum pump - VTLF 2.200 - BECKER - oil-free / single-stage / compact
Rotary vane vacuum pump - VTLF 2.200 - BECKER - oil-free / single-stage / compact
Rotary vane vacuum pump - VTLF 2.200 - BECKER - oil-free / single-stage / compact - image - 2
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Other characteristics
compact, small, direct-drive
Ultimate vacuum

200 mbar
(2.9 psi)

Flow rate

178 m³/h, 218 m³/h
(6,286.01 ft³/h, 7,698.6 ft³/h)

Power

4 kW, 4.8 kW
(5.44 hp, 6.53 hp)

Length

1,174 mm
(46 in)

Width

664 mm
(26.14 in)

Height

528 mm
(20.79 in)

Noise level

75 dB, 77 dB

Weight

151 kg
(332.9 lb)

Description

Rotary vane vacuum pumps, oil-free The VTLF 2.200 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change. 100% dry-running (oil-less) operation Long vane life Continuous duty rated Features 20,000 hour vane life 100% dry-running (oil-less) operation Quiet operation Long vane life Continuous duty rated Air-cooled Single shaft direct drive Compact design Variety of motors available Benefits Low operation and maintenance costs No cycling times Quiet operation – no silencer enclosures necessary Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime
