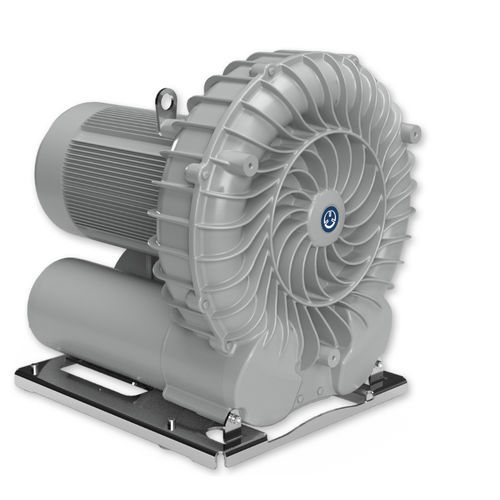

Side-channel vacuum pump SV 1100/1
lubricatedsingle-stage

Side-channel vacuum pump - SV 1100/1	 - BECKER - lubricated / single-stage
Side-channel vacuum pump - SV 1100/1	 - BECKER - lubricated / single-stage
Side-channel vacuum pump - SV 1100/1	 - BECKER - lubricated / single-stage - image - 2
Add to favorites
Compare this product


Characteristics

Technology
side-channel
Lubrication
lubricated
Number of stages
single-stage
Ultimate vacuum

-320 mbar
(-4.64 psi)

Flow rate

1,050 m³/h, 1,250 m³/h
(37,080.4 ft³/h, 44,143.33 ft³/h)

Power

15 kW, 18 kW
(20.39 hp, 24.47 hp)

Width

525 mm
(20.67 in)

Height

611 mm
(24.06 in)

Noise level

75 dB, 79 dB

Weight

157 kg
(346.13 lb)

Description

Side channel vacuum pumps, single stage The SV 1100/1 is a turbo dynamic pump that offers high performance with 100% free of oil and contact during operation. These side channel blowers are low-maintenance, highly efficient, and require only minimal maintenance. Integrated inlet & discharge silencers Pedestal with vibration isolators for horizontal installation External suction filter (optional) External vacuum relief respectively safety valve (optional) Features Non-contact compression Compact design Inlet & discharge silencers Sealed bearings eliminate greasing Rubber foot or pedestal mount for versatile installation Benefits Low operating and exhaust temperatures Quiet Operation
