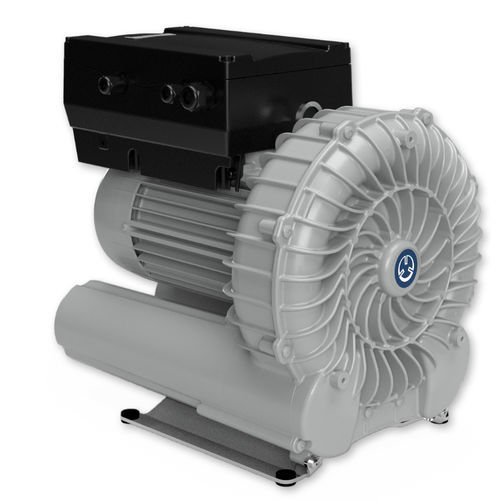

Side-channel vacuum pump VARIAIR SV 130/1lubricatedsingle-stagesuction
Add to favorites
Compare this product
Characteristics
- Technology
- side-channel
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- suction
- Other characteristics
- compact, air-cooled
- Ultimate vacuum
Min.: -305 mbar
(-4.42 psi)Max.: -65 mbar
(-0.94 psi)- Flow rate
130 m³/h, 160 m³/h
(4,590.91 ft³/h, 5,650.35 ft³/h)- Power
Min.: 0 kW
(0 hp)Max.: 1.5 kW
(2.04 hp)- Operating temperature
Min.: 0 °F
(-18 °C)Max.: 250 °F
(121 °C)- Length
Min.: 15 in
Max.: 17 in
- Width
10.4 in, 11.6 in, 13 in, 13.7 in
- Height
12 in, 12.7 in
- Noise level
Min.: 61 dB
Max.: 65 dB
- Weight
Min.: 20.9 kg
(46.08 lb)Max.: 25.9 kg
(57.1 lb)
Description
Side channel vacuum pumps, single stage
The VARIAIR SV 130/1 is a turbo dynamic pump with a VARIAIR frequency inverter that offers high performance with 100% free of oil and contact during operation. These side channel blowers are low-maintenance, highly efficient, and require only minimal maintenance.
VARIAIR frequency inverter
Exact volume flow due to variable speed operation
Features
VARIAIR frequency inverter
Non-contact compression
Compact design
Inlet & discharge silencers
Sealed bearings eliminate greasing
Rubber foot or pedestal mount for versatile installation
Benefits
Exact volume flow due to variable speed operation
Low operating and exhaust temperatures
Quiet Operation
