Side-channel vacuum pump VARIAIR SV 500/1
lubricatedsingle-stagecompact

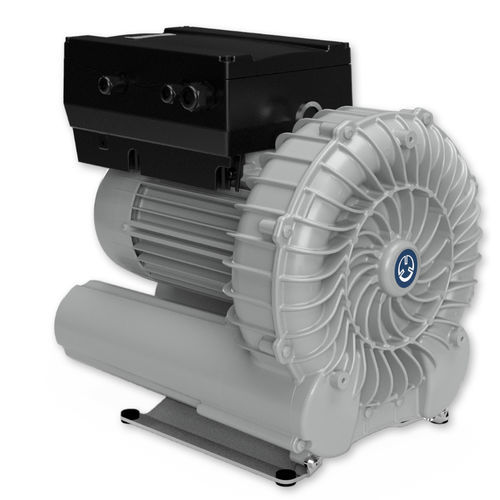

Side-channel vacuum pump - VARIAIR SV 500/1	 - BECKER - lubricated / single-stage / compact
Side-channel vacuum pump - VARIAIR SV 500/1	 - BECKER - lubricated / single-stage / compact
Side-channel vacuum pump - VARIAIR SV 500/1	 - BECKER - lubricated / single-stage / compact - image - 2
Side-channel vacuum pump - VARIAIR SV 500/1	 - BECKER - lubricated / single-stage / compact - image - 3
Add to favorites
Compare this product


Characteristics

Technology
side-channel
Lubrication
lubricated
Number of stages
single-stage
Other characteristics
compact, air-cooled
Ultimate vacuum

-370 mbar
(-5.37 psi)

Flow rate

1,000 m³/h
(35,314.67 ft³/h)

Power

Min.: 11 kW
(14.96 hp)

Max.: 22 kW
(29.91 hp)

Width

474 mm
(18.66 in)

Height

523 mm
(20.59 in)

Noise level

81 dB

Weight

97.5 kg
(214.95 lb)

Description

Side channel vacuum pumps, single stage The VARIAIR SV 500/1 is a turbo dynamic pump with a VARIAIR frequency inverter that offers high performance with 100% free of oil and contact during operation. These side channel blowers are low-maintenance, highly efficient, and require only minimal maintenance. VARIAIR frequency inverter Exact volume flow due to variable speed operation Features VARIAIR frequency inverter Non-contact compression Compact design Inlet & discharge silencers Sealed bearings eliminate greasing Rubber foot or pedestal mount for versatile installation Benefits Exact volume flow due to variable speed operation Low operating and exhaust temperatures Quiet Operation
