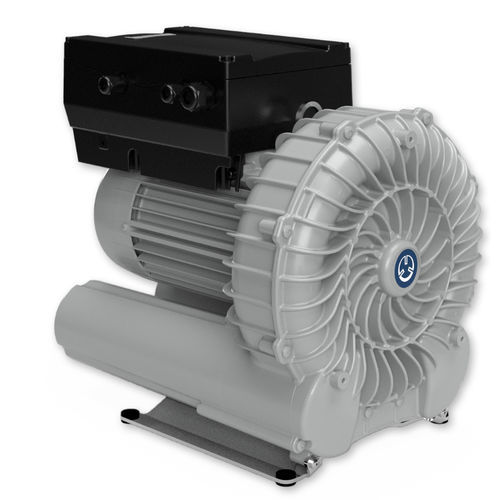

Side-channel vacuum pump VARIAIR SV 700/1
lubricatedsingle-stagecompact

Side-channel vacuum pump - VARIAIR SV 700/1	 - BECKER - lubricated / single-stage / compact
Side-channel vacuum pump - VARIAIR SV 700/1	 - BECKER - lubricated / single-stage / compact
Side-channel vacuum pump - VARIAIR SV 700/1	 - BECKER - lubricated / single-stage / compact - image - 2
Side-channel vacuum pump - VARIAIR SV 700/1	 - BECKER - lubricated / single-stage / compact - image - 3
Side-channel vacuum pump - VARIAIR SV 700/1	 - BECKER - lubricated / single-stage / compact - image - 4
Add to favorites
Compare this product


Characteristics

Technology
side-channel
Lubrication
lubricated
Number of stages
single-stage
Other characteristics
compact, air-cooled
Ultimate vacuum

-336 mbar
(-4.87 psi)

Flow rate

1,180 m³/h
(41,671.31 ft³/h)

Power

Min.: 11 kW
(14.96 hp)

Max.: 22 kW
(29.91 hp)

Width

496 mm
(19.53 in)

Height

594 mm
(23.39 in)

Noise level

75 dB

Weight

120 kg
(264.55 lb)

Description

Side channel vacuum pumps, single stage The VARIAIR SV 700/1 is a turbo dynamic pump with a VARIAIR frequency inverter that offers high performance with 100% free of oil and contact during operation. These side channel blowers are low-maintenance, highly efficient, and require only minimal maintenance. VARIAIR frequency inverter Exact volume flow due to variable speed operation Features VARIAIR frequency inverter Non-contact compression Compact design Inlet & discharge silencers Sealed bearings eliminate greasing Rubber foot or pedestal mount for versatile installation Benefits Exact volume flow due to variable speed operation Low operating and exhaust temperatures Quiet Operation

Catalogs

No catalogs are available for this product.

See all of BECKER‘s catalogs
