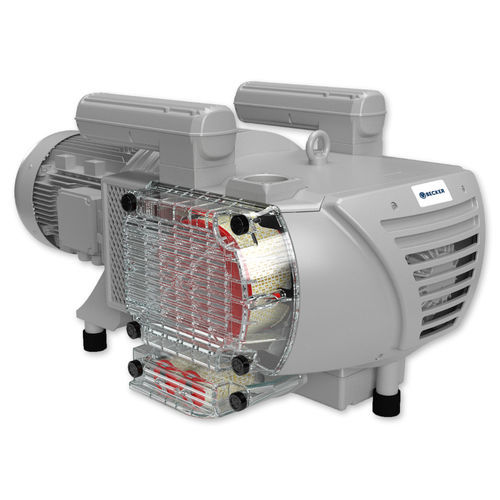

Rotary vane vacuum pump VTLF 2.250 SK
oil-freesingle-stagesmall

Rotary vane vacuum pump - VTLF 2.250 SK - BECKER - oil-free / single-stage / small
Rotary vane vacuum pump - VTLF 2.250 SK - BECKER - oil-free / single-stage / small
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Other characteristics
compact, small
Ultimate vacuum

100 mbar
(1.45 psi)

Flow rate

247 m³/h, 295 m³/h
(8,722.72 ft³/h, 10,417.83 ft³/h)

Power

7.5 kW, 9 kW
(10.2 hp, 12.24 hp)

Width

644 mm
(25.35 in)

Height

558 mm
(21.97 in)

Noise level

77 dB, 79 dB

Weight

161 kg
(354.94 lb)

Description

Rotary vane vacuum pumps, oil-free The VTLF 2.250 SK is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change. 100% dry-running (oil-less) operation Long vane life Continuous duty rated Features 20,000 hour vane life 100% dry-running (oil-less) operation Quiet operation Long vane life Continuous duty rated Air-cooled Single shaft direct drive Compact design Variety of motors available Benefits Low operation and maintenance costs No cycling times Quiet operation – no silencer enclosures necessary Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime
