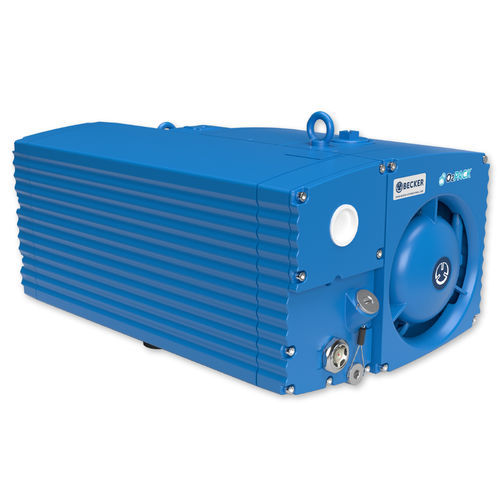

Rotary vane vacuum pump U 5.201 O2-PACK
lubricatedsingle-stagegas

Rotary vane vacuum pump - U 5.201 O2-PACK - BECKER - lubricated / single-stage / gas
Rotary vane vacuum pump - U 5.201 O2-PACK - BECKER - lubricated / single-stage / gas
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Applications
gas, for water
Other characteristics
small
Ultimate vacuum

0.5 mbar
(0.01 psi)

Flow rate

200 m³/h, 240 m³/h
(7,062.93 ft³/h, 8,475.52 ft³/h)

Power

Max.: 4.8 kW
(6.53 hp)

Min.: 4 kW
(5.44 hp)

Width

510 mm
(20.08 in)

Height

399 mm
(15.71 in)

Noise level

72 dB, 74 dB

Weight

143 kg
(315.26 lb)

Description

Rotary vane vacuum pumps, oil-lubricated The U 5.201 O2-PACK is a deep vacuum, displacement pump ideally suited for the vacuum packaging of food. Becker's U series can be used across a wide range of applications from vacuum chamber machines, form-fill-seal machines and tray sealer. Gas ballast valve Non return valve High efficiency oil separator element Features High efficiency oil separator element XL oil tank with dual stage oil separation Robust and long-lasting Benefits Low operation and maintenance costs Cool and quiet operation Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime Best cold start performance High water vapour tolerance Robust and long-lasting
