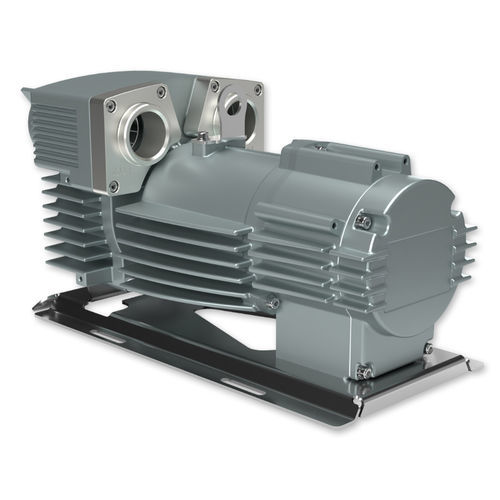

Side-channel vacuum pump VASF 2.50/1-0.DC024 Basic
lubricatedsingle-stagecompact

Side-channel vacuum pump - VASF 2.50/1-0.DC024 Basic - BECKER - lubricated / single-stage / compact
Side-channel vacuum pump - VASF 2.50/1-0.DC024 Basic - BECKER - lubricated / single-stage / compact
Side-channel vacuum pump - VASF 2.50/1-0.DC024 Basic - BECKER - lubricated / single-stage / compact - image - 2
Side-channel vacuum pump - VASF 2.50/1-0.DC024 Basic - BECKER - lubricated / single-stage / compact - image - 3
Add to favorites
Compare this product


Characteristics

Technology
side-channel
Lubrication
lubricated
Number of stages
single-stage
Other characteristics
compact, horizontal
Ultimate vacuum

-180 mbar
(-2.61 psi)

Flow rate

48 m³/h
(1,695.1 ft³/h)

Power

0.4 kW
(0.54 hp)

Noise level

Min.: 57 dB

Max.: 80 dB

Weight

Min.: 7.3 kg
(16.09 lb)

Max.: 8.2 kg
(18.08 lb)

Description

Side channel vacuum pumps, single stage the VASF 2.50/1-0.DC024 Basic is a turbo dynamic pump with a VARIAIR frequency inverter that offers high performance with 100% free of oil and contact during operation. These side channel blowers are low-maintenance, highly efficient, and require only minimal maintenance. VARIAIR frequency inverter (external) Exact volume flow due to variable speed operation Features VARIAIR frequency inverter (external) Non-contact compression Compact design Inlet & discharge silencers (optional) Sealed bearings eliminate greasing Vibration isolators for horizontal installation Benefits Exact volume flow due to variable speed operation Low operating and exhaust temperatures Quiet Operation
