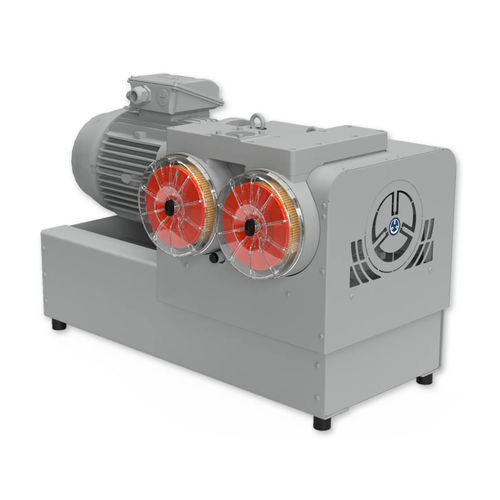

Rotary claw compressor BCP 100airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary claw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Applications
- construction, service, suction
- Other characteristics
- compact, air-cooled
- Pressure
2 bar
(29.01 psi)- Flow
100 m³/h, 120 m³/h
(3,531.47 ft³/h, 4,237.76 ft³/h)- Power
Max.: 7.5 kW
(10.2 hp)Min.: 5.5 kW
(7.48 hp)- Length
Max.: 896 mm
(35 in)Min.: 805 mm
(32 in)- Width
540 mm
(21 in)- Height
508 mm
(20 in)- Weight
103.5 kg
(228.2 lb)- Noise level
75 dB, 77 dB
Description
The BCP 100 is a low pressure displacement pump. It is air-cooled, contact free and requires only minimal maintenance.
Pulsation damper
Built-in suction filter with clear cover
Vibration isolators
Features
100% oil-less operation chamber
Air-cooled
Non-contact compression
Continuous duty rated
Single shaft direct drive
Compact design
Variety of motors available
Internal filtration with clear cover
Pulsation damper
Benefits
No external filters needed
Low maintenance, minimal maintenance costs
Straightforward construction for fast and easy service on-site to reduce downtime
Low energy consumption, low energy costs
Quick visual check of filter status
