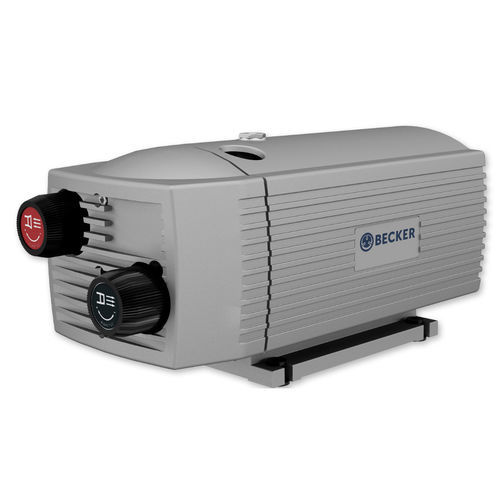

Rotary vane vacuum pump T 4.25 DV
oil-freesingle-stagesuction

Rotary vane vacuum pump - T 4.25 DV - BECKER - oil-free / single-stage / suction
Rotary vane vacuum pump - T 4.25 DV - BECKER - oil-free / single-stage / suction
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Applications
suction
Other characteristics
compact, small, large
Ultimate vacuum

Min.: -0.5 bar
(-7.25 psi)

Max.: 0.5 bar
(7.25 psi)

Flow rate

25 m³/h, 30 m³/h
(882.87 ft³/h, 1,059.44 ft³/h)

Power

0.75 kW, 0.9 kW
(1.02 hp, 1.22 hp)

Length

505 mm
(20 in)

Width

260 mm
(10.24 in)

Height

290 mm
(11.42 in)

Noise level

69 dB

Weight

26 kg
(57.32 lb)

Description

Rotary vane pressure/vacuum pumps, oil-free The T 4.25 DV is an oil-free combination pressure/vacuum pump for blast and suction air. It is a rugged and durable pump designed to operate on a continuous duty basis. This dry-running displacement pump utilises self-lubricating, graphite composite vanes and requires only minimal maintenance. Built-in, large inlet filter Pressure and vacuum regulating valves Vibration isolators Features 100% dry-running (oil-less) operation Quiet operation Long vane life Continuous duty rated Air-cooled Single shaft direct drive Compact design Variety of motors available Benefits Low operation and maintenance costs No cycling times Quiet operation – no silencer enclosures necessary Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime
