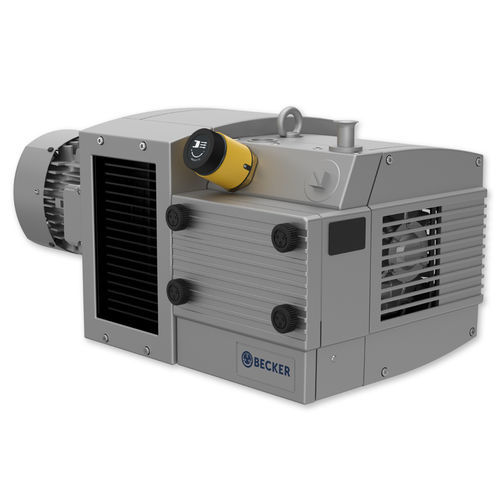

Rotary vane vacuum pump KVT 3.60
oil-free380VAC230VAC

Rotary vane vacuum pump - KVT 3.60 - BECKER - oil-free / 380VAC / 230VAC
Rotary vane vacuum pump - KVT 3.60 - BECKER - oil-free / 380VAC / 230VAC
Rotary vane vacuum pump - KVT 3.60 - BECKER - oil-free / 380VAC / 230VAC - image - 2
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-free
Supply voltage
230VAC, 380VAC, 460 VAC, 400 VAC
Number of stages
single-stage
Other characteristics
compact, small, air-cooled, direct-drive
Ultimate vacuum

100 mbar
(1.45 psi)

Flow rate

55 m³/h, 66 m³/h
(1,942.31 ft³/h, 2,330.77 ft³/h)

Power

2.2 kW, 2.6 kW
(2.99 hp, 3.54 hp)

Length

Min.: 704 mm
(28 in)

Max.: 747 mm
(29 in)

Width

353 mm
(13.9 in)

Height

328 mm
(12.91 in)

Noise level

71 dB, 73 dB

Weight

47 kg
(103.62 lb)

Description

Rotary vane vacuum pumps, oil-free The KVT 3.60 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change. 100% dry-running (oil-less) operation Long vane life Continuous duty rated Features 20,000 hour vane life 100% dry-running (oil-less) operation Quiet operation Long vane life Continuous duty rated Air-cooled Single shaft direct drive Compact design Variety of motors available Benefits Low operation and maintenance costs No cycling times Quiet operation – no silencer enclosures necessary Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime
