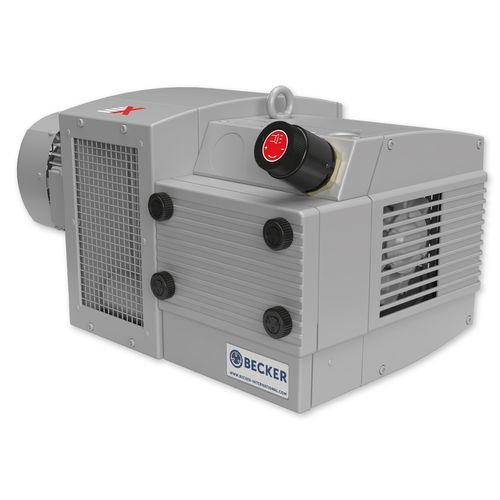

Rotary vane vacuum pump KVX 3.80
oil-freesingle-stagecompact

Rotary vane vacuum pump - KVX 3.80 - BECKER - oil-free / single-stage / compact
Rotary vane vacuum pump - KVX 3.80 - BECKER - oil-free / single-stage / compact
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Other characteristics
compact, direct-drive
Ultimate vacuum

100 mbar
(1.45 psi)

Flow rate

67 m³/h, 78.5 m³/h
(2,366.08 ft³/h, 2,772.2 ft³/h)

Power

2.2 kW, 2.6 kW
(2.99 hp, 3.54 hp)

Length

Max.: 747 mm
(29 in)

Min.: 704 mm
(28 in)

Width

353 mm
(13.9 in)

Height

328 mm
(12.91 in)

Noise level

72 dB, 75 dB

Weight

49 kg
(108.03 lb)

Description

Rotary vane vacuum pumps, oil-free The KVX 3.80 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change. 100% dry-running (oil-less) operation Long vane life Continuous duty rated Features 20,000 hour vane life 100% dry-running (oil-less) operation Quiet operation Long vane life Continuous duty rated Air-cooled Single shaft direct drive Compact design Variety of motors available Benefits Low operation and maintenance costs No cycling times Quiet operation – no silencer enclosures necessary Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime
