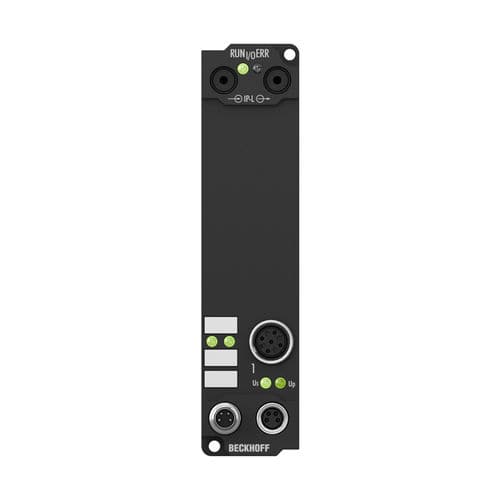

RS-232 interface module IE6002

busseriesindustrial

The IE6002 serial interface module allows the connection of devices with an RS232 interface, which operates in conformity with the CCITT V.28/DIN 66 259-1 standards. The module transmits the data in a fully transparent manner to the higher-level automation device. The data is transferred via the fieldbus using a simple handshake protocol. This does not have any effect on the protocol of the serial interface. The active serial communication channel functions independently of the higher-level bus system in full duplex mode at up to 115,200 baud, while a 128 byte receive buffer and a 16 byte send buffer are available. The RS232 interface guarantees high immunity to interference through electrically isolated signals. Technical data - IE6002 Data transfer channels - 2 (1/1), TxD and RxD Data transfer rates - 1200…115,200 baud, 9600 baud (8 bits, no parity, 1 stop bit) is preset RS232 connection - M12, screw type Nominal voltage - 24 V DC (-15 %/+20 %) Bit transfer - RS232 (EIA-232) Bit distortion - < 3 % Cable length - max. 15 m “0” signal voltage - -18…+3 V “1” signal voltage - 3…18 V Data buffer - 128 bytes receive buffer, 16 bytes transmit buffer Power supply connection - feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Current consumption from US (without sensor current) - 40 mA Bit width in the process image - input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible) Electrical isolation - RS232/control voltage: 500 V, to the fieldbus: yes, via IP-Link Operating/storage temperature - 0…+55 °C/-25…+85 °C Vibration/shock resistance - conforms to EN 60068-2-6/EN 60068-2-27
