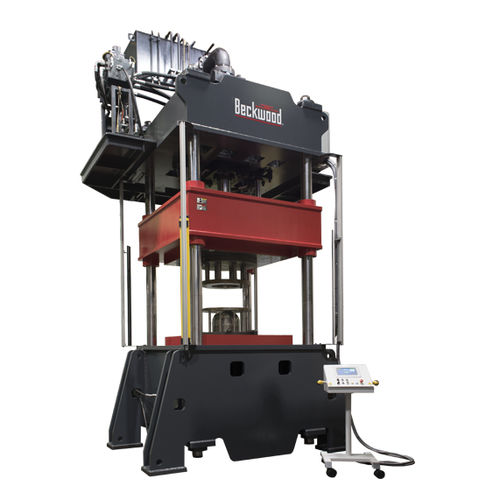

Hydraulic press
deep drawing4-columnPLC-controlled

hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
deep drawing
Structure
4-column
Control
PLC-controlled
Other characteristics
custom, high-pressure
Applications
for sheet metal
Force

450 tf

Description

Custom Features: (4) 6” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity 20-120 ton bed cushion featuring dynamic control through four travel zones Light curtains with mirrors guard the front of the press for 4-sided coverage Crown mounted power system and reservoir Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler Calculated Ram Speeds: Fast Approach 474 IPM; Pressing 15 IPM; Return 112 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
