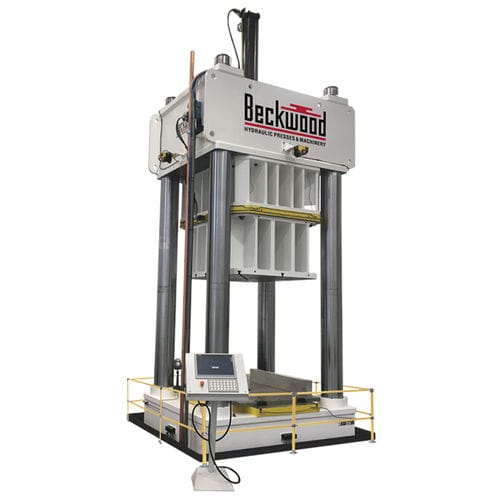

Hydraulic press

forming4-columnPLC-controlled

Custom Features: (4) 12” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance & rigidity 90 – 1400 ton main ram cylinder 10 – 225 ton up-acting quill cylinder with 2 – 25 ton retract capability 2 – 50 ton down-acting knockout cylinder with 1 – 25 ton retract capability Area scanners provided for increased operator safety Parker SSD Variable Frequency Drive for increased energy efficiency & control Autonomous fluid fill system capable of part volumes up to at least 150 gallons Auxiliary manifolds mounted to the sides of the press provide a source for auxiliary hydraulic cylinders, fill and drain ports for the fluid fill system All electrical components are UL Listed Calculated Ram Speeds: Fast Approach 386 IPM; Pressing 0.5 – 10 IPM; Return 309 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
