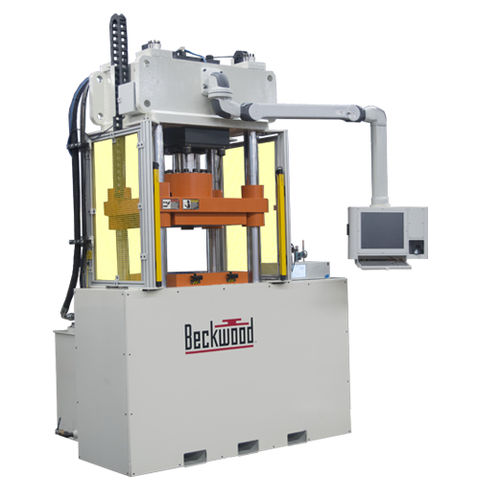

Hydraulic press

pneumaticformingPLC-controlled

Custom Features: Pace 6000 pneumatic bulge forming unit provided to control the air pressure (4) 4” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity (2) U-slots provided for 24” long pneumatic die rollers in bed Light curtains guarding the front and rear openings of the press; bolt-on expanded metal guarding on the sides Delta high speed motion controller provided for superior pressure accuracy to within ±1% of full system pressure Load cell mounted on the main ram cylinder to provide force feedback Integrated with Go/No-Go functionality; if any performance variables fall outside the programmed window of acceptance, the part will be deemed “No-Go” or unacceptable and a red light will be displayed Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler Calculated Ram Speeds: Pressing: 0- 44 IPM; Return: 0- 79 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
