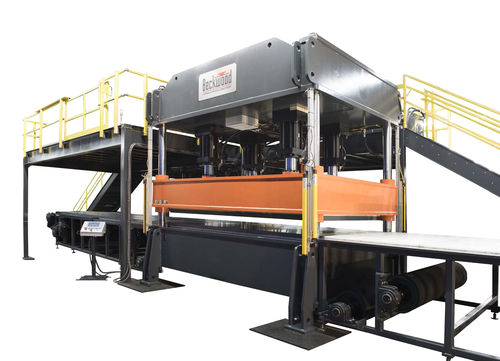

Hydraulic press

compressionfor molding4-column

Industry - - Consumer Products - Frame Style - - 4-Post - Special Features - - • Belt Conveyor System • Active Leveling Control • Heated & Cooled Platens Custom Features: Belt conveyor system provided for loading, indexing through the press, and unloading the material (3) 3” x 78” x 130” heated platens: (2) in pressing area and (1) on the bed, on the exit side Multiple zones of temperature control for ultimate uniformity Exit side of the press is equipped with (1) 3” x 78” x 130” water cooled platen, underneath the belt conveyor Four-axis Active Leveling Control (ALC) for precision bed to ram parallelism Crown mounted power system and reservoir with mezzanine access Kidney loop filter/cooler circuit with thermostatically-controlled water-oil heat exchanger Ram Speeds: Pressing: 35 IPM, Return: 69 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
