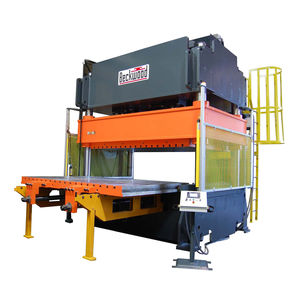

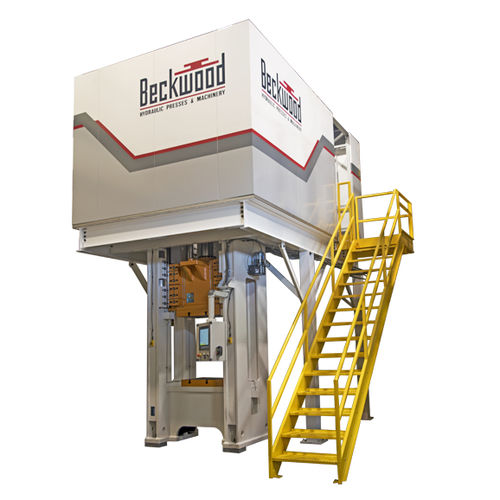

Hydraulic press

assemblystampingframe

Frame Style - - Gib-Guided - Special Features - - • 8-Point Gib Guidance System • 1200 IPM Approach Speed • ANSI B11.2 Compliant • Ram Safety Catcher System (RSCS) Custom Features: 8 point square gib guidance system minimizes lateral movement under load Conforms to ANSI Hydraulic Power Press Safety Standard B11.2 Hydraulic Ram Safety Catcher System (RSCS) provided for secondary holding of ram the in any position during the stroke Redundant load holding hydraulic cylinders to prevent a gravity fall Vibration dampening leveling pads to absorb mechanical energy for overall system protection Calculated Ram Speeds: Fast Approach: 1200 IPM, Pressing: 11-112 IPM, Return: 980 IPM Kidney loop filter/cooler circuit with thermostatically-controlled water-oil heat exchanger Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
