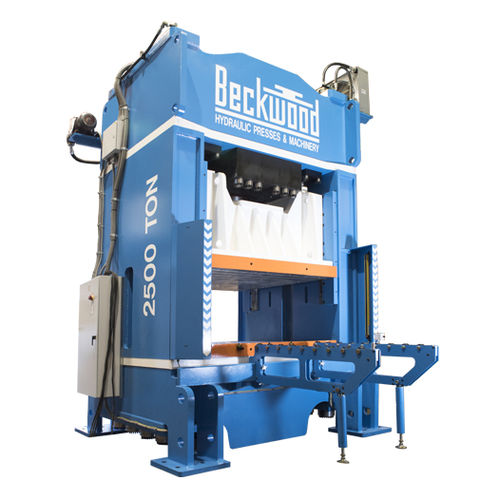

Hydraulic press

forming4-columnPLC-controlled

Custom Features: Quick die change system features infinitely adjustable die consoles and hydraulic die rollers in the bed Delta high speed motion controller for superior pressure and positional accuracy and control during scoring operations Pneumatic air pump improves energy efficiency and ensures pressure is held in the event of a power loss during the “Bulge Form” mode 8-point square gib guidance system minimizes lateral movement under load Light curtains protect the front and rear openings of the press Crown mounted power system and reservoir Kidney loop filter/cooler circuit with thermostatically-controlled water modulation valve Ram Speeds: Approach 50 IPM; Pressing 2-8 IPM; Return 32 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
