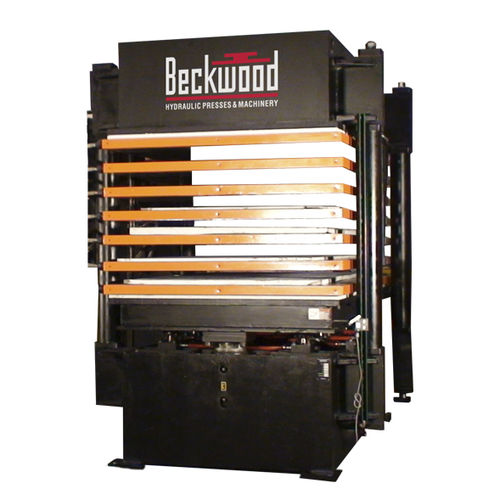

Hydraulic press

compressionfor molding4-column

Custom Features: (4) 4” diameter chrome housing posts with oversized poured/cast ram guide bushings for superior ram guidance and rigidity 60” x 110” platens serve as mounting surfaces for the upper and lower heat platens (5) suspended oil-heated platens for a total of (6) cavities Each platen is machined to provide (2) oil circulation zones for a total of (14) zones Vibration dampening pads provided to absorb mechanical energy for overall system protection Skid mounted power system and reservoir Fixed stops for dimensional tolerance control Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler Dwell capability Calculated Ram Speeds: Pressing: 76 IPM; Return: 94 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
