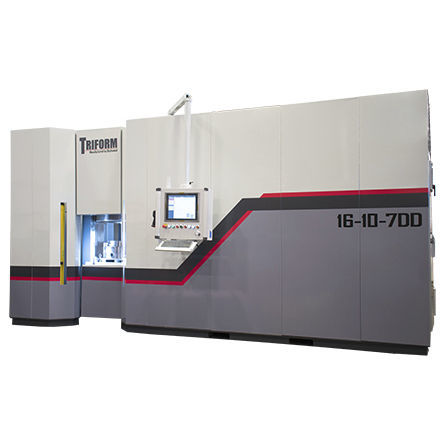

Hydraulic press Triform 16-10-7DD

drawingdeep drawingwith front loading/unloading

The Triform 16-10-7 deep draw sheet hydroforming press offers a 16 inch forming space and an incredibly capable 10,000 PSI of pressure. This machine includes a 7″ punch stroke and 12″ punch tool diameter. The 16-10-7DD deep draw machine provides all of the “standard” luxuries of the Triform line including the ability to function as a fluid cell press; and Triform’s proprietary “In-Sight” feature for visual and physical inspection of a part during the forming sequence. Additionally this model can come equipped with an optional tool changer. These features are incredibly valuable to operations with high mix / low volume production. Features of Triform Deep Draw Sheet Hydroforming Presses: Compatible with Cincinnati and Verson deep draw tooling System Diagnostics Alarm Handling and Logging Multi-level Password Protection PLC Input/ Output Visualization Batch Counter Average Cycle Timer Recipe storage up to 30 steps and 10,000+ recipes Sequential programming of pressure and punch position OEM set-up screen for remote support Benefits of Triform Deep Draw Sheet Hydroforming Presses: Able to operate in either fluid cell mode or deep draw mode Easy part development with proprietary "In-Sight" feature for visual inspection mid-process Low tooling costs with greater process & design flexibility Fast, inexpensive diaphragm changes Durable, with low maintenance requirements Fast cycle times
