Hydraulic press 68-10FC
forminghydroformingcompact

Hydraulic press - 68-10FC - Beckwood Press - forming / hydroforming / compact
Hydraulic press - 68-10FC - Beckwood Press - forming / hydroforming / compact
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming, hydroforming
Structure
compact
Control
PLC-controlled
Applications
process, for sheet metal, rubber
Max. pressure

689 bar
(9,993 psi)

Hydraulic tank volume

2,271 l
(600 gal)

Overall length

5,330 cm
(2,098 in)

Overall width

198 cm
(78 in)

Overall height

520 cm
(205 in)

Description

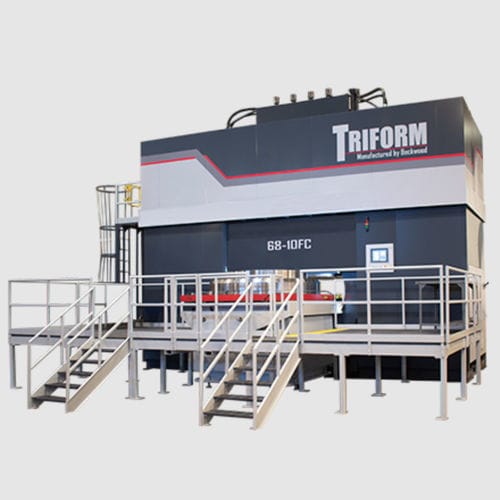

With a large 68”-diameter round forming area and 10,000 PSI of pressure, the Triform model 68-10FC fluid cell sheet hydroforming press is the largest circular sheet hydroforming press in the world. It features a shuttle system for easy part loading and unloading as well as intuitive recipe handling for expedited R&D efforts. Form one large part or multiple smaller parts in a single cycle for increased throughput. Features of Triform Fluid Cell Sheet Hydroforming Presses: Programmable Diaphragm Pressure System Diagnostics Alarm Handling and Logging PLC Input/ Output Visualization Batch Counter Average Cycle Timer Benefits of Triform Fluid Cell Sheet Hydroforming Presses: Low tooling costs with greater process & design flexibility Improved Part Quality Compact Design Allows for Portability and Flush Floor Operation Simple-to-Operate with Touchscreen Interface Alternative to Press Brakes and Rubber Pad Presses Durable, with low maintenance requirements Fast cycle times
