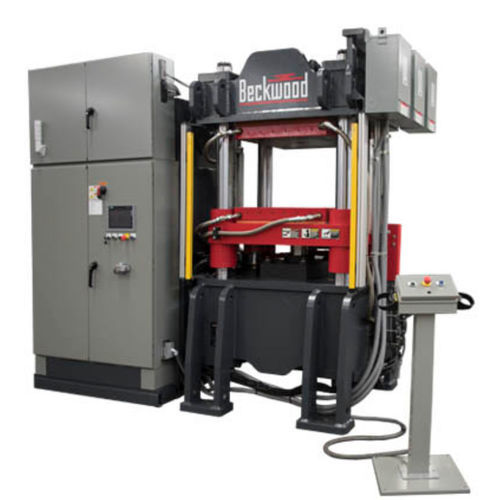

Electric press

assemblyfor moldingframe

Frame Style - - 4-Post - Special Features - - • Heated/Cooled Platens • Dwell Capability • Up-acting Ram • Knockout cylinder - Intended Use - - Used in an R&D capacity to form lightweight composite materials for the aerospace industry - Custom Features: (4) 5” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity Up-acting ram Dwell capability 12-ton knockout (ejector cylinder) fixed in the upper platen (2) 28” x 28” heated platens with multiple zones of temperature control for ultimate uniformity Light curtains guarding the front opening of the press Skid mounted power system and reservoir Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler Calculated Ram Speeds: Fast Approach: 254 IPM; Pressing: 1-26 IPM; Return: 203 IPM Sound deadening skins around the HPU reduce the overall operational noise Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
