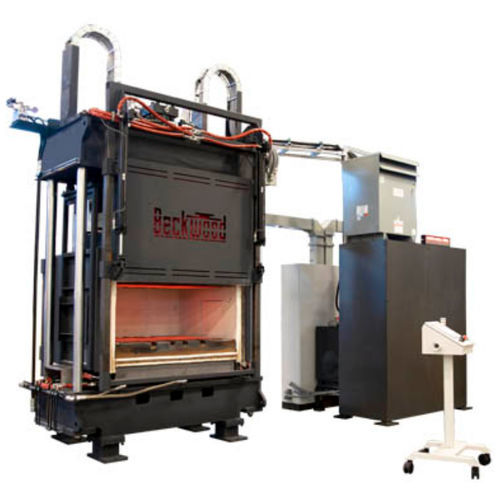

Hydraulic press

assemblyframeautomatic

Frame Style - - 4-Post - Special Features - - • High-Temperature Heated Platens • Automatic Insulated Doors • 3-Cylinder Configuration Custom Features: (4) chrome housing posts with oversized poured/cast ram guide bushings for superior ram guidance and rigidity 3-cylinder configuration for increased precision and safety (2) 30” x 48” Duraloy TMA-4505 electrically-heated platens with multiple zones of temperature control up to 1,600-degree F Gun drilled channels in the platens create a serpentine flow for rapid cooling Insulated automatic door system grants 4-sided access while maximizing heat efficiency Kidney loop filter/cooler circuit with thermostatically-controlled water-oil heat exchanger Calculated Ram Speeds: Pressing: 0.125-90 IPM; Return: 0-120 IPM Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
