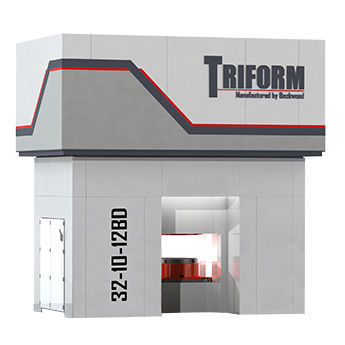

Hydraulic press 32-10-12DD

punchingdeep drawinghydroforming

The Triform 32-10-12 deep draw sheet hydroforming press features a 12 inch punch stroke with precise forming pressure up to 10,000 PSI distributed evenly across a 32 inch diameter forming area. To minimize the overall footprint, this press is offered in a vertical configuration and will require a pit to accommodate the lower punch cylinder. The 32-10-12DD provides all of the must have features associated with the Triform family including the proprietary “In-Sight” tool which allows for physical inspection of a part mid-cycle and an integrated tool change system to reduce die changeover times. This tool changer can also include a shuttle and T-rail so operators can stage and move multiple tools simultaneously with little effort. These features are designed to help decrease forming times while increasing output for operations with high-mix, low-volume production. This deep draw sheet hydroforming press offers the simple operation and maintenance for which Triform is known. Additionally, Features of Triform Deep Draw Sheet Hydroforming Presses: Compatible with Cincinnati and Verson deep draw tooling System Diagnostics Alarm Handling and Logging Multi-level Password Protection PLC Input/ Output Visualization Batch Counter Average Cycle Timer Recipe storage up to 30 steps and 10,000+ recipes Sequential programming of pressure and punch position OEM set-up screen for remote support Benefits of Triform Deep Draw Sheet Hydroforming Presses: Able to operate in either fluid cell mode or deep draw mode Easy part development with proprietary "In-Sight" feature for visual inspection mid-process Low tooling costs with greater process & design flexibility
