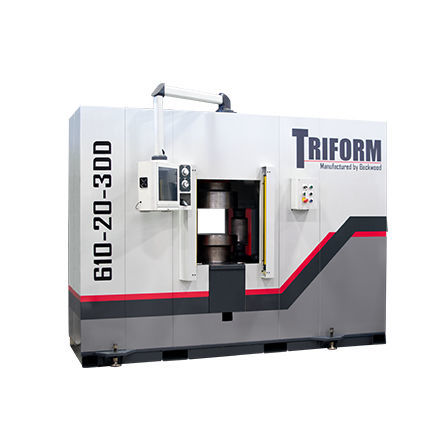

Hydraulic press 610-20-3DD

drawingdeep drawinghydroforming

The Triform 610-20-3DD is the most compact deep draw sheet hydroforming press in Triform’s line-up, boasts a flush floor design, and offers the highest forming pressure available. This press comes standard with 20,000 PSI. It offers a 6″ x 10″ oval forming area with a draw depth up to 3 inches. These characteristics make it perfect for the formation of small parts as often needed in the medical, electrical, computer and aerospace industries. If you are drawing small parts from strong materials such as titanium, this is the optimal deep draw press for your operation. The 610-20-3DD deep draw sheet hydroforming machine provides all of the “standard” luxuries of the Triform line including our proprietary “In-Sight” feature which allows you to stop the press at any point in the cycle to visually inspect the results and adjust the recipe if needed. This greatly expedites R&D for new deep draw parts. Features of Triform Deep Draw Sheet Hydroforming Presses: Compatible with Cincinnati and Verson deep draw tooling System Diagnostics Alarm Handling and Logging Multi-level Password Protection PLC Input/ Output Visualization Batch Counter Average Cycle Timer Recipe storage up to 30 steps and 10,000+ recipes Sequential programming of pressure and punch position OEM set-up screen for remote support Benefits of Triform Deep Draw Sheet Hydroforming Presses: Able to operate in either fluid cell mode or deep draw mode Easy part development with proprietary "In-Sight" feature for visual inspection mid-process Low tooling costs with greater process & design flexibility Fast, inexpensive diaphragm changes Durable, with low maintenance requirements Fast cycle times
