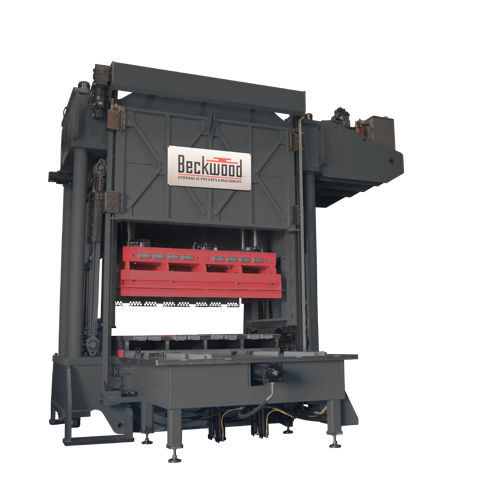

Hydraulic press

formingassemblyframe

Frame Style - - 4-Post - Special Features - - • Bed Shuttle System • Ejector System • Insulated automatic doors • Active Leveling Control Custom Features: (4) 8” diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity 82” x 112” bed shuttle system Forming temperatures up to 1800̊F Insulated automatic door system grants 4 sided access while maximizing heat efficiency Equipped with two (2) sets of press ejectors to lift molds off of the bed platen Equipped with four-axis Active Leveling Control (ALC) for precision bed to ram parallelism Kidney loop filter/cooler circuit with thermostatically-controlled water-oil heat exchanger Calculated Ram Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing
