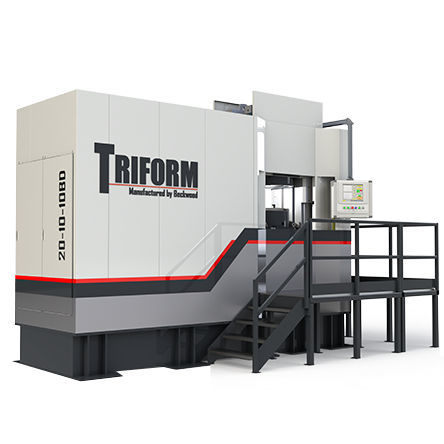

Hydraulic press 20-10-10DD

drawingdeep drawinghydroforming

The Triform 20-10-10 deep draw sheet hydroforming press features a 20 inch round forming area, 10,000 PSI of pressure, and a 10 in depth-of-draw. Together, these specifications create a powerful machine capable of drawing and forming a multitude of part sizes. This model provides all of the “standard” luxuries of the Triform line including our proprietary “In-Sight” feature which allows you to stop the press and make a visual and physical inspection of a part during the forming sequence. This feature is excellent for rapid part development and allows you to check the part to ensure your recipe is forming properly. Additionally this model can come equipped with an optional tool changer. These features are incredibly valuable to operations with high mix / low volume production. Features of Triform Deep Draw Sheet Hydroforming Presses: Compatible with Cincinnati and Verson deep draw tooling System Diagnostics Alarm Handling and Logging Multi-level Password Protection PLC Input/ Output Visualization Batch Counter Average Cycle Timer Recipe storage up to 30 steps and 10,000+ recipes Sequential programming of pressure and punch position OEM set-up screen for remote support Benefits of Triform Deep Draw Sheet Hydroforming Presses: Able to operate in either fluid cell mode or deep draw mode Easy part development with proprietary "In-Sight" feature for visual inspection mid-process Low tooling costs with greater process & design flexibility Fast, inexpensive diaphragm changes Durable, with low maintenance requirements Fast cycle times
