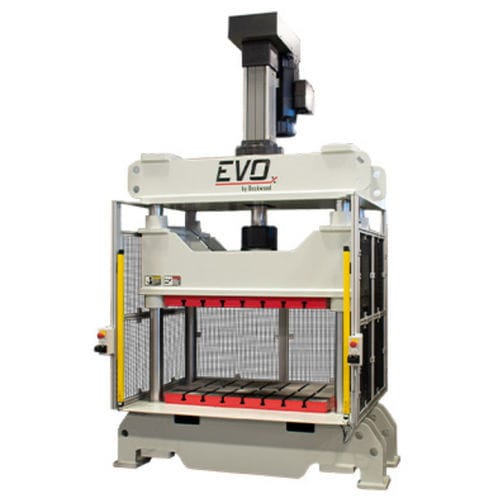

Electric press

formingframeram

Frame Style - - 4-Post - Special Features - - • Servo-electric actuator • Ram Safety Catcher • 30” x 48” forming area Custom Features: (4) chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity SITEMA Hydraulic Ram Safety Catcher System (RSCS) provided for secondary holding of the ram in any position during the stroke and is designed for the static load of the ram and tooling Force Accuracy: +/- 0.5% FS Force Resolution: 0.5lbs Data acquisition system with productivity reporting Light curtains guarding the front opening of the press; bolt-on expanded metal guarding on the sides and rear of the press Electrical panel and components certified for Canadian UL (CUL) standards Calculated Ram Speeds: Fast Approach: 300 IPM; Pressing: 100 IPM; Return: 300 IPM Common Features on Beckwood Servo Presses: Positional repeatability within +/-0.0005” Force & positional feedback Data acquisition measuring torque, force, position, and time at a maximum rate of 1 sample / ms Roller-screw actuator design for longer life PressLink Remote Support module for complementary diagnostics & troubleshooting Structure designed for Infinite Life using Finite Element Analysis (FEA) simulation software Backed by Beckwood’s industry leading dedicated service and support team
