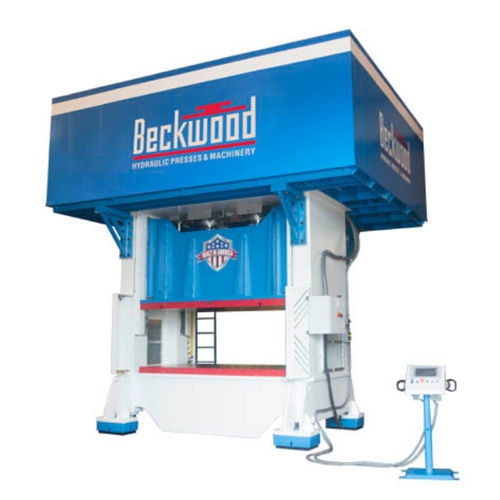

Hydraulic press

assemblyframefor aluminum

Industry - - Consumer Products - Frame Style - - Gib-Guided - Special Features - - • 8-Point Gib Guidance System • ANSI B11.2 Compliant • Quick Die Change System • Vibration Dampening Pads Custom Features: 60”x100” magnetic bed and ram platens provided for clamping the tool to the upper and lower bolsters 8-point square gib guidance system minimizes lateral movement under load Conforms to ANSI Hydraulic Power Press Safety Standard B11.2 Light curtains guarding the front and rear openings of the press; bolt on expanded metal guarding on the sides of the press Interlocking safety die blocks for maintenance and tool change Hydraulic die lifters and die consoles facilitate quick die change Vibration dampening pads provided to absorb mechanical energy for overall system protection Crown mounted power system and reservoir Calculated Ram Speeds: Fast Approach: 394 IPM, Pressing: 45 IPM, Return: 411 IPM Kidney loop filter/cooler circuit with thermostatically controlled fan motor Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing
